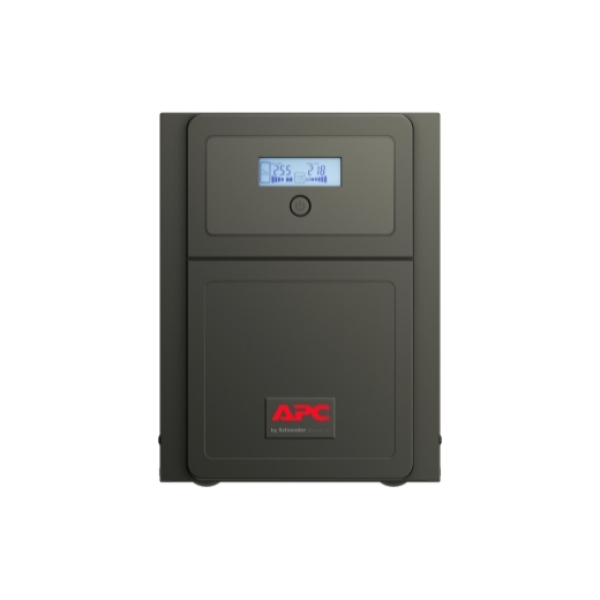

APC Easy UPS Line-interactive SMV 2000VA 230V, Schuko Outlet
7605 LE
7800 LE
Price / kg:
In Stock
Brand: APC
Model: SMV2000AI-GR
output voltage
230 V
Model: SMV2000AI-GR
output voltage
230 V
Share:
| provided equipment |
Documentation CD
User manual USB cable |
|
|---|---|---|
| Number of tare power |
98 W
|
|
| Number of power module free slots |
0
|
|
| Number of power module filled slots |
0
|
|
| redundant |
No
|
|
| UPS size |
WS
|
| color |
Black
|
|
|---|---|---|
| depth |
45.5 cm
|
|
| height |
24 cm
|
|
| mounting preference |
No preference
|
|
| net weight |
23.5 kg
|
|
| mounting mode |
Not rack-mountable
|
|
| two posts mountable |
0
|
|
| USB compatible |
No
|
|
| width |
18 cm
|
| network frequency |
45...65 Hz +/- 1 Hz auto-sensing
|
|
|---|---|---|
| plug standard |
IEC 60320 C14
|
|
| input voltage limits |
165...295 V
|
|
| Input voltage |
220 V
240 V |
|
| number of cables |
1
|
|
| input voltage |
230 V
|
| rated power in W |
1400 W
|
|
|---|---|---|
| Maximum configurable power in W |
1400 W
|
|
| output frequency |
50/60 Hz +/- 1 Hz unsynchronised
|
|
| crest factor |
3: 1
|
|
| UPS type |
Line-interactive
|
|
| Wave type |
Sine wave
|
|
| nb of power socket outlets |
4 Schuko CEE 7
|
|
| curve equation |
Efficiency
|
|
| curve fixed loss |
0.0292
|
|
| curve load maximum |
100 %
|
|
| curve load minimum |
3 %
|
|
| curve proportional loss |
0
|
|
| curve square loss |
0.0038
|
|
| curve X-axis maximum |
100 %
|
|
| curve test cond ID |
Curve fit of data measured in accordance with the ENERGY STAR Test Method for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 230V/50Hz electrical input and balanced resistive load (PF =
|
|
| curve X-axis minimum |
0 %
|
|
| curve X-axis title |
Load
|
|
| curve X-axis units |
Percentage
|
|
| curve Y-axis maximum |
100 %
|
|
| curve Y-axis minimum |
50 %
|
|
| curve Y-axis title |
Efficiency
|
|
| curve Y-axis units |
Percentage
|
|
| graph display |
1
|
|
| output voltage |
230 V
|
|
| Maximum configurable power in VA |
2000 VA
|
|
| rated power in VA |
2000 VA
|
|
| Transfer time |
2-6 ms typical: 12 ms maximum
|
| product certifications |
CE
|
|
|---|---|---|
| standards |
EN/IEC 62040-1
EN/IEC 62040-2 |
| ambient air temperature for operation |
0…40 °C
|
|
|---|---|---|
| relative humidity |
0…95 % non-condensing
|
|
| operating altitude |
0...3000 m
|
|
| ambient air temperature for storage |
-10…40 °C
|
|
| storage Relative Humidity |
0…95 % Non-condensing
|
|
| storage altitude |
0…15000 m
|
|
| acoustic level |
45 dBA
|
|
| show note OP temperature |
No
|
|
| IP degree of protection |
IP20
|
| battery type |
Lead-acid battery
|
|
|---|---|---|
| number of battery filled slots |
0
|
|
| number of battery-free slots |
0
|
|
| Battery recharge time |
4 h
|
|
| liquid value |
0
|
|
| battery voltage |
48 V
|
|
| battery curve |
C
|
|
| battery charger power |
75 W rated
|
|
| Battery power in VAH |
302 VAh runtime
336 VAh capacity |
|
| battery life |
3…5 year(s)
|
|
| extended runtime |
0
|
