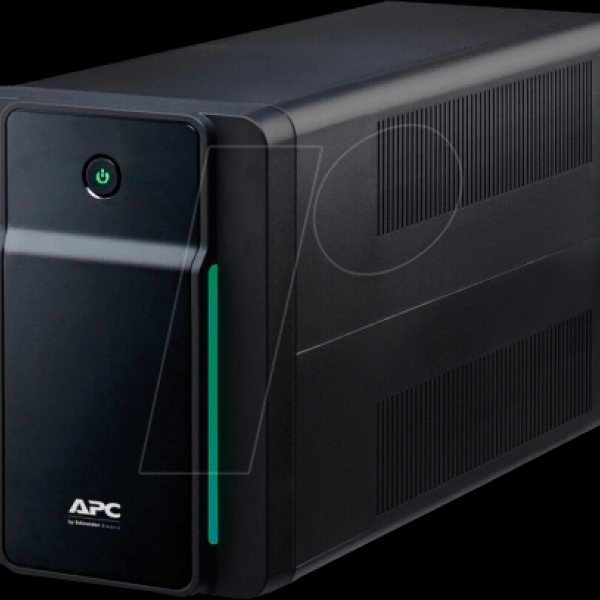

APC Easy UPS BVX 2200VA, 230V, AVR, Schuko Sockets
5362 LE
5500 LE
Price / kg:
In Stock
Brand: APC
Model: BVX2200LI-GR
input voltage
230 V AC 1 phase
Model: BVX2200LI-GR
input voltage
230 V AC 1 phase
Share:
| provided equipment |
User manual
|
|
|---|---|---|
| max runtime |
240 min
|
|
| Number of tare power |
30 W
|
|
| Number of power module free slots |
0
|
|
| Number of power module filled slots |
0
|
|
| redundant |
No
|
|
| UPS size |
WS
|
| cable length |
1.22 m
|
|
|---|---|---|
| color |
Black
|
|
| depth |
39 cm
|
|
| height |
19 cm
|
|
| mounting support |
Floor
|
|
| mounting preference |
No preference
|
|
| net weight |
12.2 kg
|
|
| mounting mode |
Not rack-mountable
|
|
| two posts mountable |
0
|
|
| USB compatible |
No
|
|
| width |
14 cm
|
| network frequency |
50/60 Hz +/- 5 Hz auto-sensing
|
|
|---|---|---|
| plug standard |
Schuko
|
|
| input voltage limits |
140...300 V 230 V AC
|
|
| number of cables |
1
|
|
| input voltage |
230 V AC 1 phase
|
|
| cos phi |
0.54
|
| rated power in W |
1200 W
|
|
|---|---|---|
| Maximum configurable power in W |
1200 W
|
|
| output frequency |
50/60 Hz +/- 1 Hz sync to mains
|
|
| UPS type |
Line-interactive
|
|
| Wave type |
Stepped approximation to a sinewave
|
|
| nb of power socket outlets |
4 Schuko
|
|
| curve equation |
Efficiency
|
|
| curve fixed loss |
0.0195
|
|
| curve load maximum |
100 %
|
|
| curve load minimum |
2 %
|
|
| curve proportional loss |
0
|
|
| curve square loss |
0.0102
|
|
| curve X-axis maximum |
100 %
|
|
| curve test cond ID |
Curve fit of data measured in accordance with the ENERGY STAR Test Method for Uninterruptible Power Supplies. All measurements are taken in normal mode(s), at typical environmental conditions, with 230V/50Hz electrical input and balanced resistive load (PF =
|
|
| curve X-axis minimum |
0 %
|
|
| curve X-axis title |
Load
|
|
| curve X-axis units |
Percentage
|
|
| curve Y-axis maximum |
100 %
|
|
| curve Y-axis minimum |
50 %
|
|
| curve Y-axis title |
Efficiency
|
|
| curve Y-axis units |
Percentage
|
|
| full load runtime |
00:01:00 1200 W
|
|
| graph display |
1
|
|
| half load runtime |
00:08:30 600 W
|
|
| output voltage |
230 V AC 1 phase
|
|
| Maximum configurable power in VA |
2200 VA
|
|
| rated power in VA |
2200 VA
|
|
| Transfer time |
6 ms typical: 10 ms maximum
|
| product certifications |
CE
CB |
|
|---|---|---|
| standards |
EN/IEC 62040-1
EN/IEC 62040-2 CE |
|
| equipment protection policy |
Lifetime: 50000 euros
|
| ambient air temperature for operation |
0…40 °C
|
|
|---|---|---|
| relative humidity |
0…95 % non-condensing
|
|
| operating altitude |
0...3000 m
|
|
| ambient air temperature for storage |
-15…40 °C
|
|
| storage Relative Humidity |
0…95 % Non-condensing
|
|
| storage altitude |
0…3000 m
|
|
| acoustic level |
40 dBA
|
|
| show note OP temperature |
No
|
|
| IP degree of protection |
IP20
|
| battery type |
Lead-acid battery
|
|
|---|---|---|
| number of battery filled slots |
0
|
|
| number of battery-free slots |
0
|
|
| Battery recharge time |
8 h
|
|
| liquid value |
0
|
|
| battery voltage |
24 V
|
|
| battery capacity |
9.0 Ah
|
|
| battery curve |
C
|
|
| Battery power in VAH |
190 VAh runtime
216 VAh capacity |
|
| battery life |
2…3 year(s)
|
|
| Battery graph comments |
Curve fit to measured runtime data. All measurements are taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
|
|
| extended runtime |
0
|
| control panel |
LED Status display with online: on battery
|
|
|---|---|---|
| alarm |
Alarm when on battery: distinctive low battery alarm
|
| Surge energy rate |
273 J
|
|---|
| Package 1 Weight |
13.2 kg
|
|
|---|---|---|
| Package 1 Height |
29.7 cm
|
|
| Package 1 width |
23.5 cm
|
|
| Package 1 Length |
49.5 cm
|
|
| SCC14 |
10731304404627
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|---|
| Warranty |
2 years repair or replace
|
|---|
